| Model |
RSC-20150 |
Stroke |
150mm |
| Tonnage |
20T |
Closed Height |
205mm |
| Inner diameter |
60mm |
Outer diameter |
84mm |
| Model no. |
Tons(T) |
Effective Area(cm²) |
Oil Capacity(cm³) |
Inner Dia(mm) |
Outer Dia(mm) |
Travel(mm) |
Piston Dia(mm) |
Weight(kg) |
Collapsed Height |
Pump |
| RSC-1050 |
10 |
15.9 |
79 |
φ45mm |
φ64mm |
50mm |
φ38mm |
2.3 |
103mm |
CP-180 |
| RSC-10100 |
10 |
15.9 |
159 |
φ45mm |
φ64mm |
100mm |
φ38mm |
3.1 |
150mm |
CP-700 |
| RSC-10150 |
10 |
15.9 |
238 |
φ45mm |
φ64mm |
150mm |
φ38mm |
4.6 |
200mm |
CP-700 |
| RSC-2050 |
20 |
28.3 |
141 |
φ60mm |
φ84mm |
50mm |
φ50mm |
4 |
105mm |
CP-700 |
| RSC-20100 |
20 |
28.3 |
283 |
φ60mm |
φ84mm |
100mm |
φ50mm |
5.7 |
155mm |
CP-700B |
| RSC-20150 |
20 |
28.3 |
424 |
φ60mm |
φ84mm |
150mm |
φ50mm |
7.4 |
205mm |
CP-700B |
| RSC-3050 |
30 |
44.2 |
221 |
φ75mm |
φ103mm |
50mm |
φ65mm |
6.5 |
110mm |
CP-700 |
| RSC-30100 |
30 |
44.2 |
442 |
φ75mm |
φ103mm |
100mm |
φ65mm |
9 |
160mm |
CP-700B |
| RSC-30150 |
30 |
44.2 |
663 |
φ75mm |
φ103mm |
150mm |
φ65mm |
11.6 |
210mm |
CP-700A |
| RSC-5050 |
50 |
70.8 |
354 |
φ95mm |
φ118mm |
50mm |
φ65mm |
8.4 |
113mm |
CP-700B |
| RSC-50100 |
50 |
70.8 |
708 |
φ95mm |
φ118mm |
100mm |
φ80mm |
11.5 |
165mm |
CP-700A |

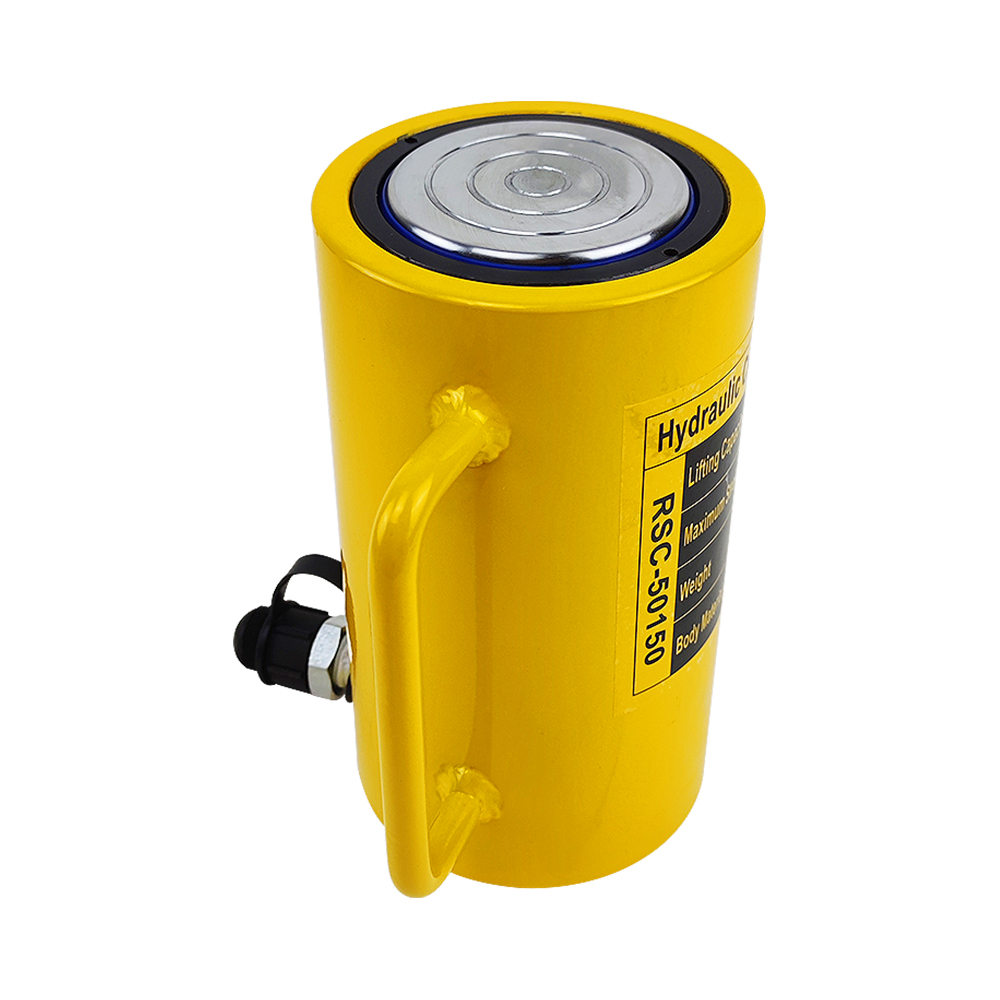

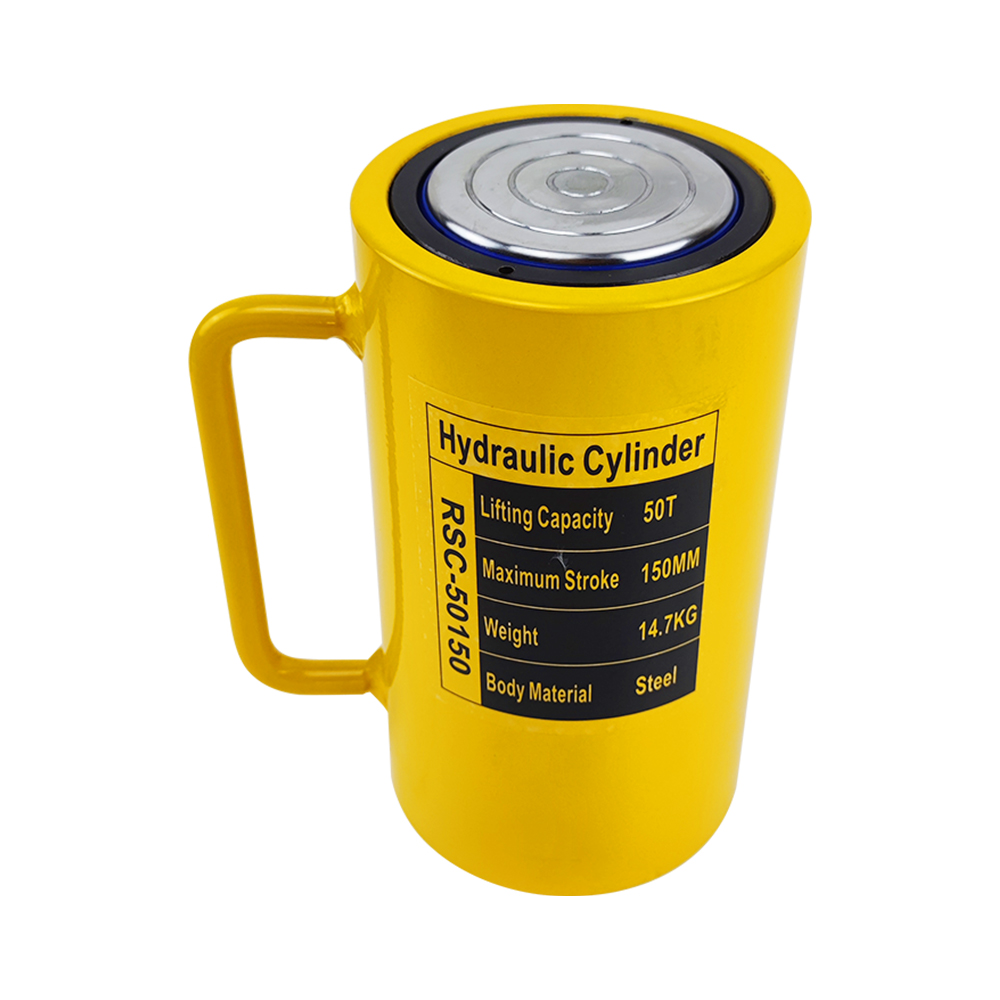

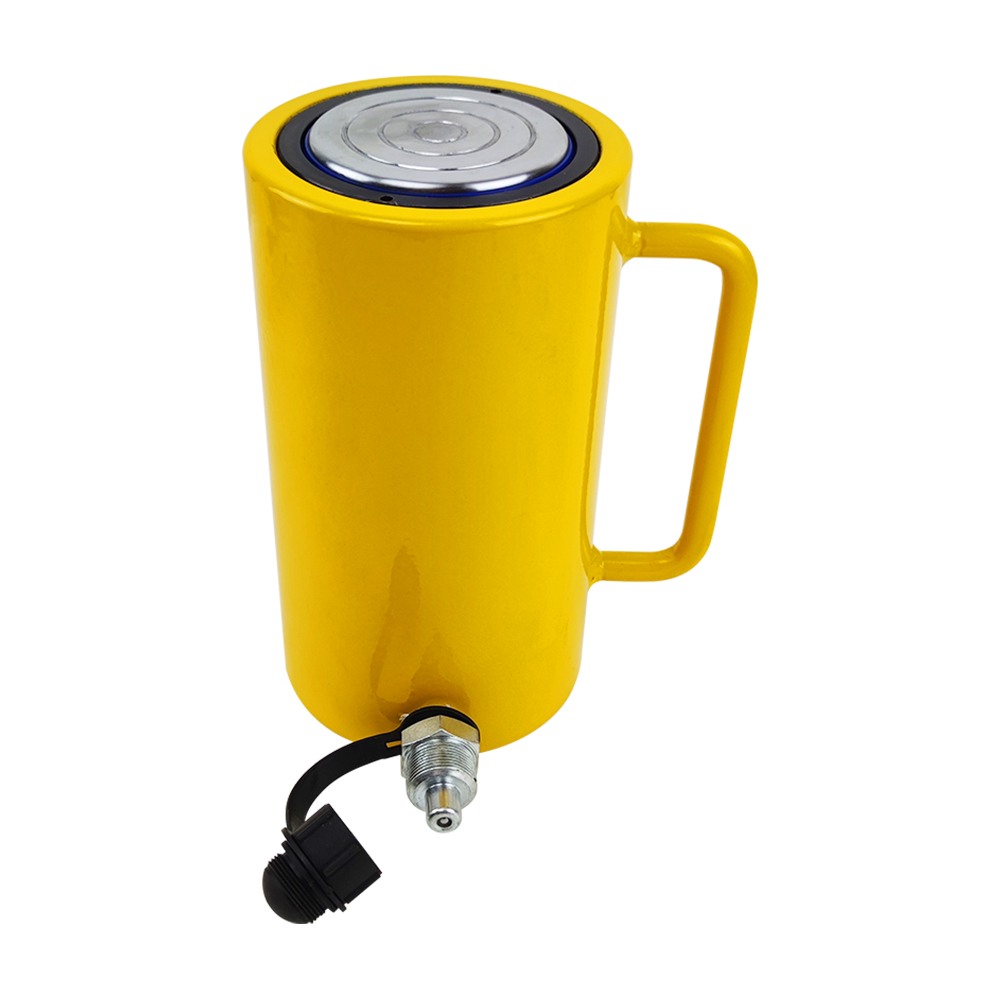

| RSC-50150 |
50 |
70.8 |
1062 |
φ95mm |
φ118mm |
150mm |
φ80mm |
14.6 |
215mm |
CP-700A |
| RSC-10050 |
100 |
143 |
715 |
φ135mm |
φ178mm |
50mm |
φ100mm |
22 |
132mm |
CP-700B |
| RSC-100100 |
100 |
143 |
1430 |
φ135mm |
φ178mm |
100mm |
φ100mm |
29 |
182mm |
CP-700A |
| RSC-100150 |
100 |
143 |
2145 |
φ135mm |
φ178mm |
150mm |
φ100mm |
35.3 |
232mm |
CP-700A |
| RSC-15050 |
150 |
213.7 |
1068 |
φ165mm |
φ208mm |
50mm |
φ115mm |
43 |
132mm |
CP-700A |
| RSC-150100 |
150 |
213.7 |
2137 |
φ165mm |
φ208mm |
100mm |
φ115mm |
53 |
182mm |
CP-700A |

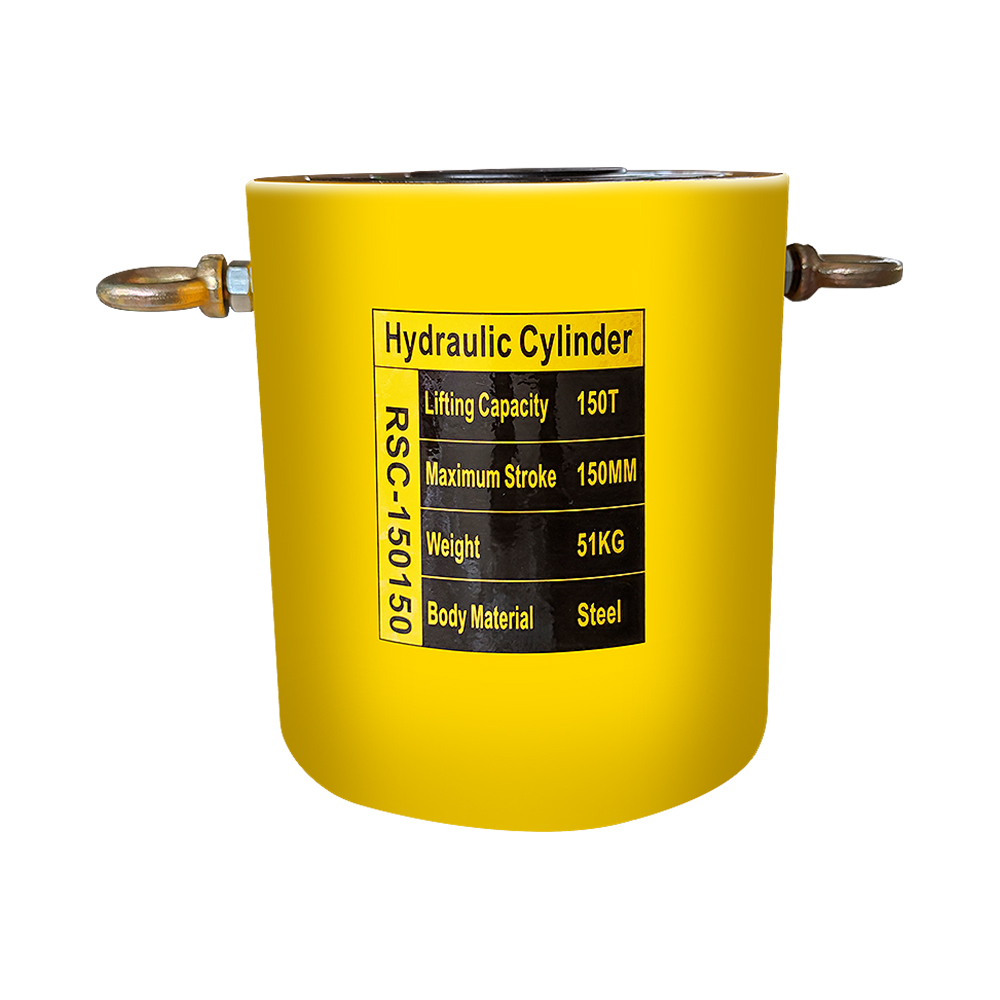

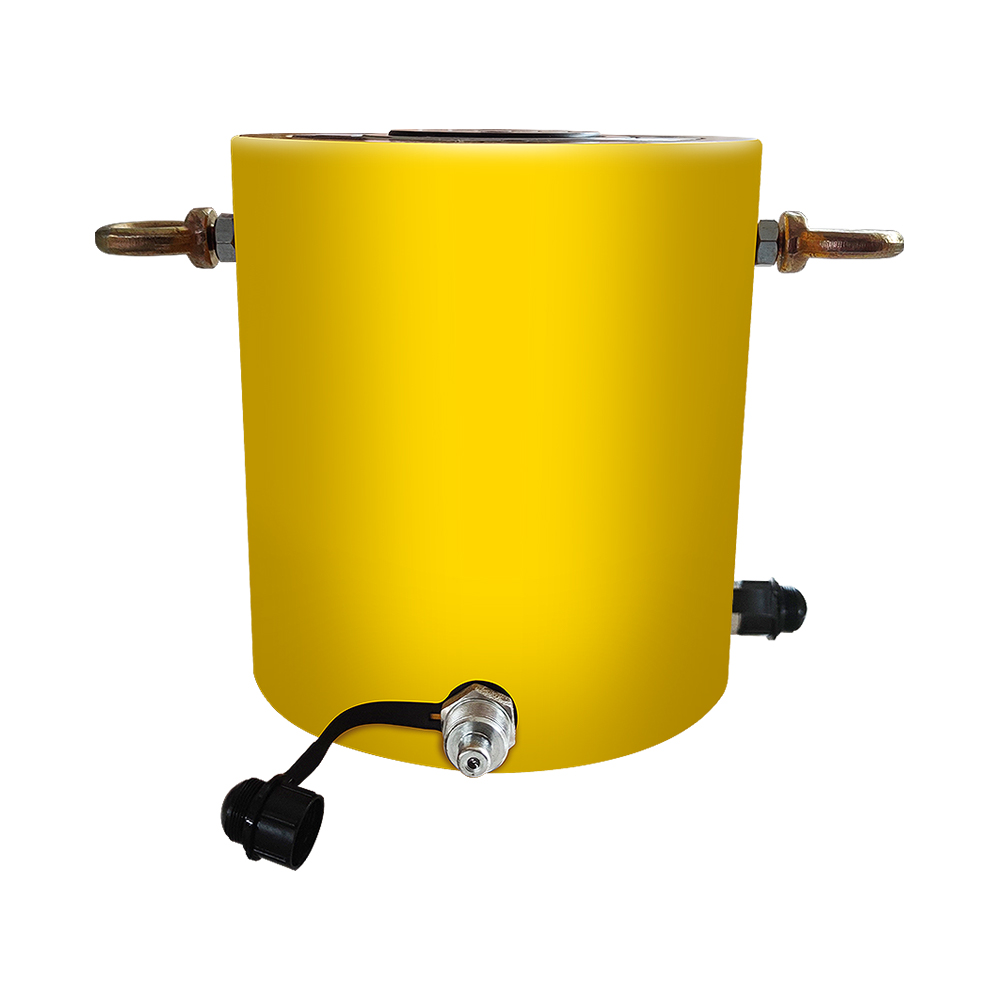

| RSC-150150 |
150 |
213.7 |
3205 |
φ165mm |
φ208mm |
150mm |
φ115mm |
63 |
232mm |
CP-700A |
| RSC-20050 |
200 |
268.6 |
1343 |
φ185mm |
φ242mm |
50mm |
φ120mm |
57 |
158mm |
CP-700A |
| RSC-200100 |
200 |
268.6 |
2686 |
φ185mm |
φ242mm |
100mm |
φ120mm |
70 |
208mm |
DYB-63A |
| RSC-200150 |
200 |
268.6 |
4029 |
φ185mm |
φ242mm |
150mm |
φ120mm |
83 |
258mm |
DYB-63A |

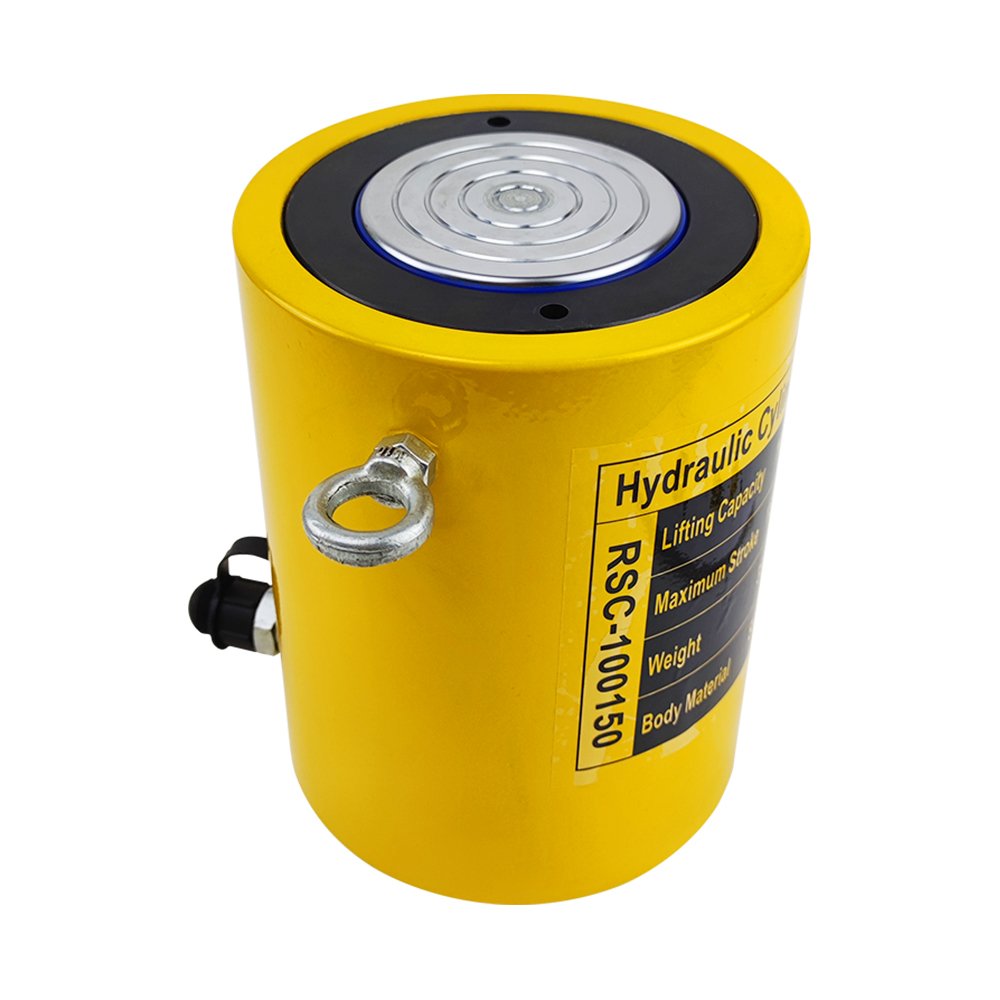

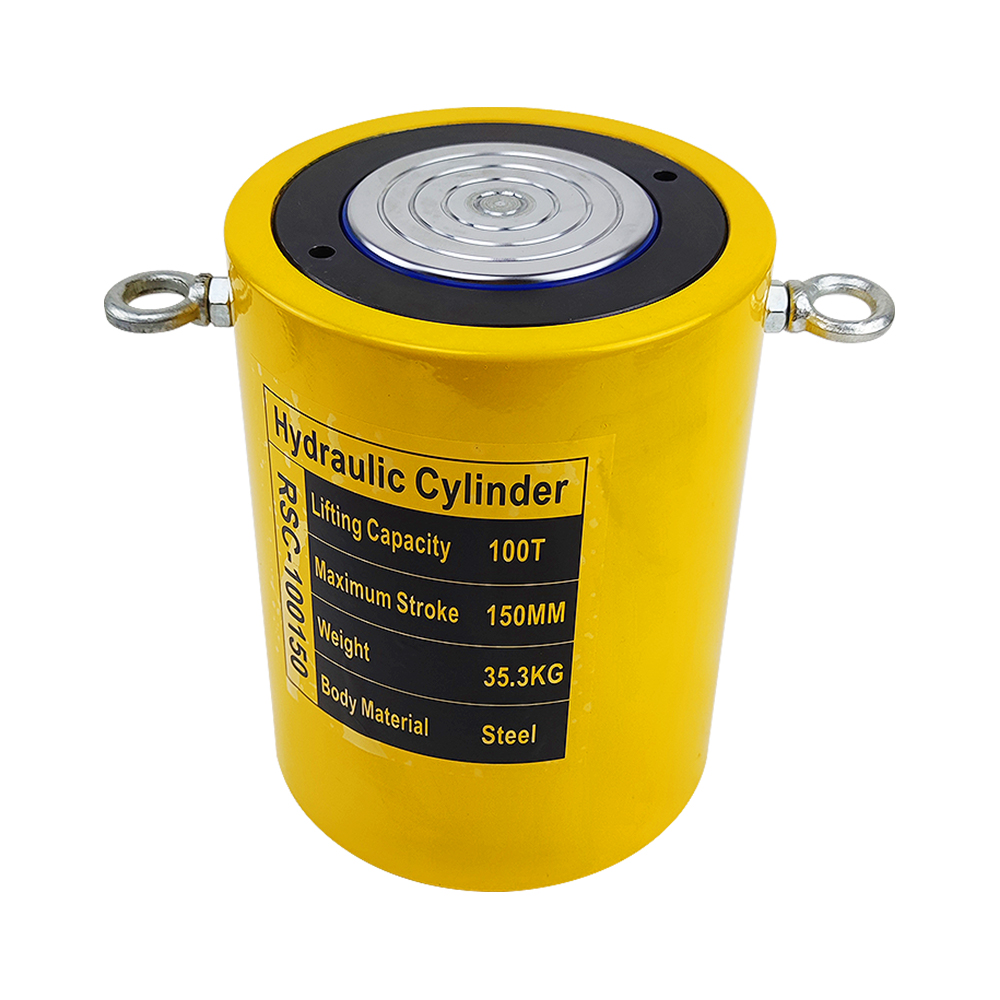

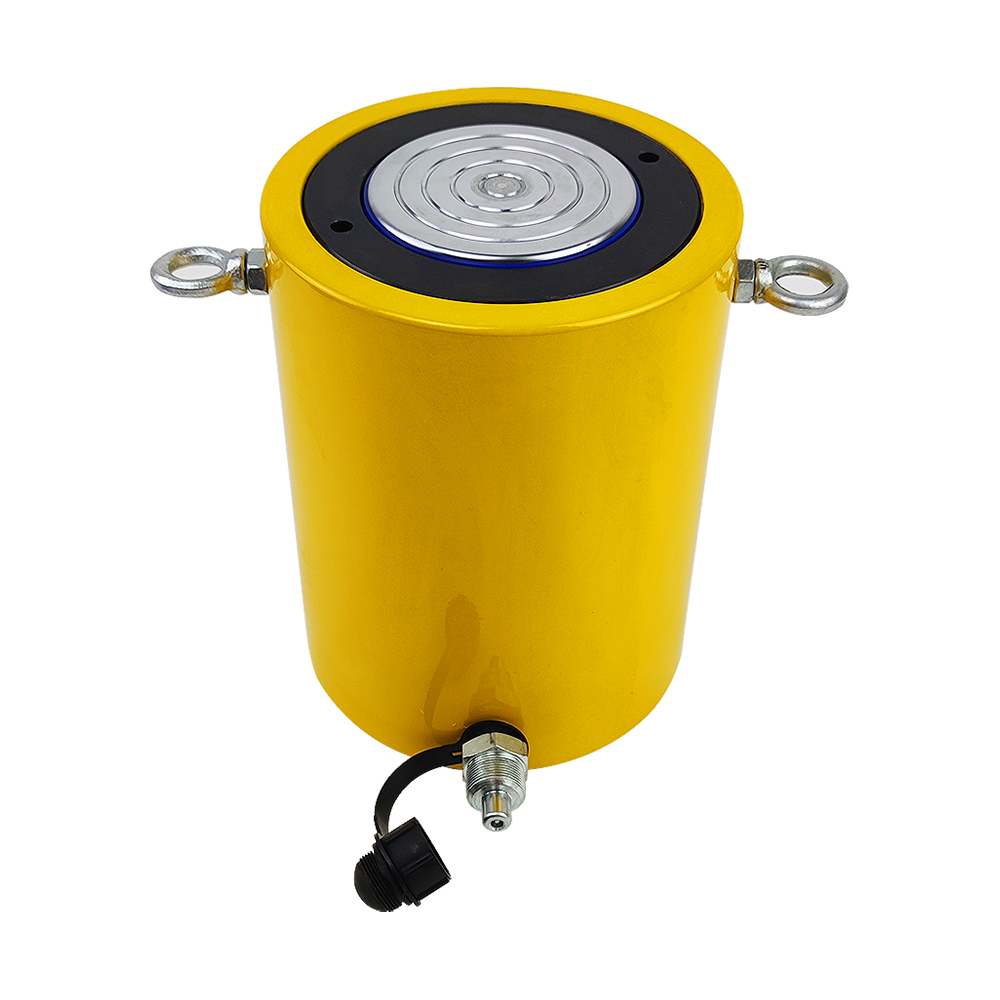

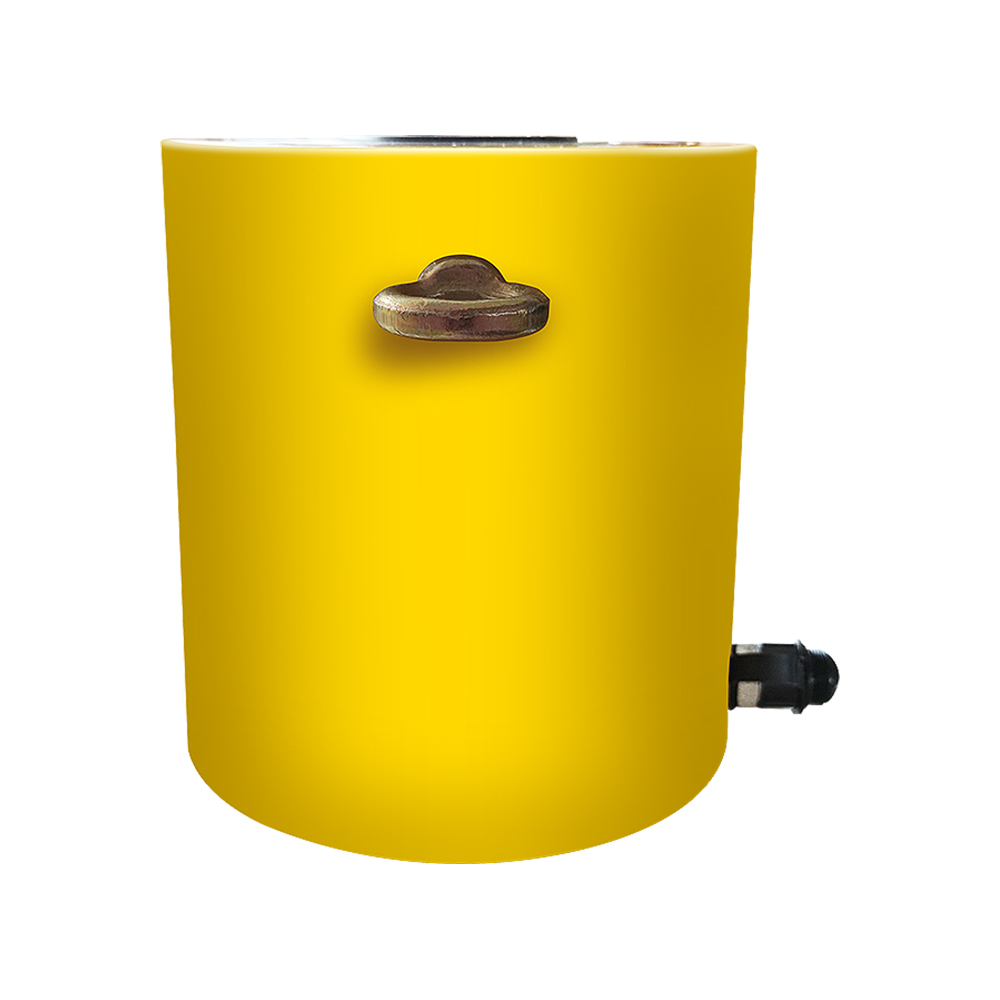

| Model |
RSC-100150 |
Stroke |
150mm |
| Tonnage |
100T |
Closed Height |
232mm |
| Inner diameter |
135mm |
Outer diameter |
178mm |
Key Features
Extended 150mm Stroke: Provides greater lifting range, reducing the need for repositioning and improving work efficiency.
High Load Capacity: Available from 20T to 150T, suitable for a wide range of heavy-duty lifting applications.
Single-Acting Hydraulic System: Reliable upward force with gravity return, ensuring simple operation and low maintenance.
Smooth & Stable Performance: Precision cylinder design guarantees full-tonnage output with no sticking or sudden drops.
Heavy-Duty Steel Construction: Built from high-strength steel with anti-corrosion coating for long-lasting durability in tough environments.
Dust-Proof Sealing System: Reinforced dust ring effectively prevents debris from entering, extending service life.
Quick & Secure Connection: Equipped with 3/8″ NPT male coupler and dust cap for fast, leak-free hydraulic connection.
Compact Yet Powerful Design: Combines long stroke capability with a relatively compact body for versatile use.
Pump Required: Compatible with manual or electric hydraulic pumps (not included) for flexible operation.
Typical Applications
Widely used in electric power projects, bridge engineering, heavy construction, shipbuilding, factory maintenance, and industrial installation. Especially suitable for tasks requiring extended lifting height such as structural alignment, equipment installation, and heavy load positioning.
Operation Guide
Connect the hydraulic cylinder to a suitable manual or electric pump.
Ensure the connector is tightly secured before operation.
Operate the pump to extend the cylinder smoothly to the required height.
Release pressure gradually after use and protect the coupler with the dust cap.
Why Choose RSC Long Stroke Series
Designed for professionals who need more reach without compromising strength, this series delivers powerful lifting, extended stroke, and reliable performance in one durable package. Perfect for demanding jobs where standard stroke cylinders fall short.
