| Model |
EZ-400/85C |
Voltage |
18V |
| Net weight |
10.87Kg |
Gross weight |
21Kg |
| Cutting force |
120KN |
Capacity |
4.0Ah |
| Rated Pressure |
70Mpa |
Charging time |
2 Hours |
| Cutting range |
Copper and aluminum armored cables below 85mm |
| Cutting/Charge |
70 Times per saturation voltage |
| Cutting/Cycle |
10-15 seconds (depending on the size of the cable diameter) |
| Accessories |
Battery:2PC, Charger:1PC, Seals:1Set |
| Mould |
16/25/35/50/70/95/120/150/185/240/300/400mm² |
| Packing size |
680mm*480mm*130mm |

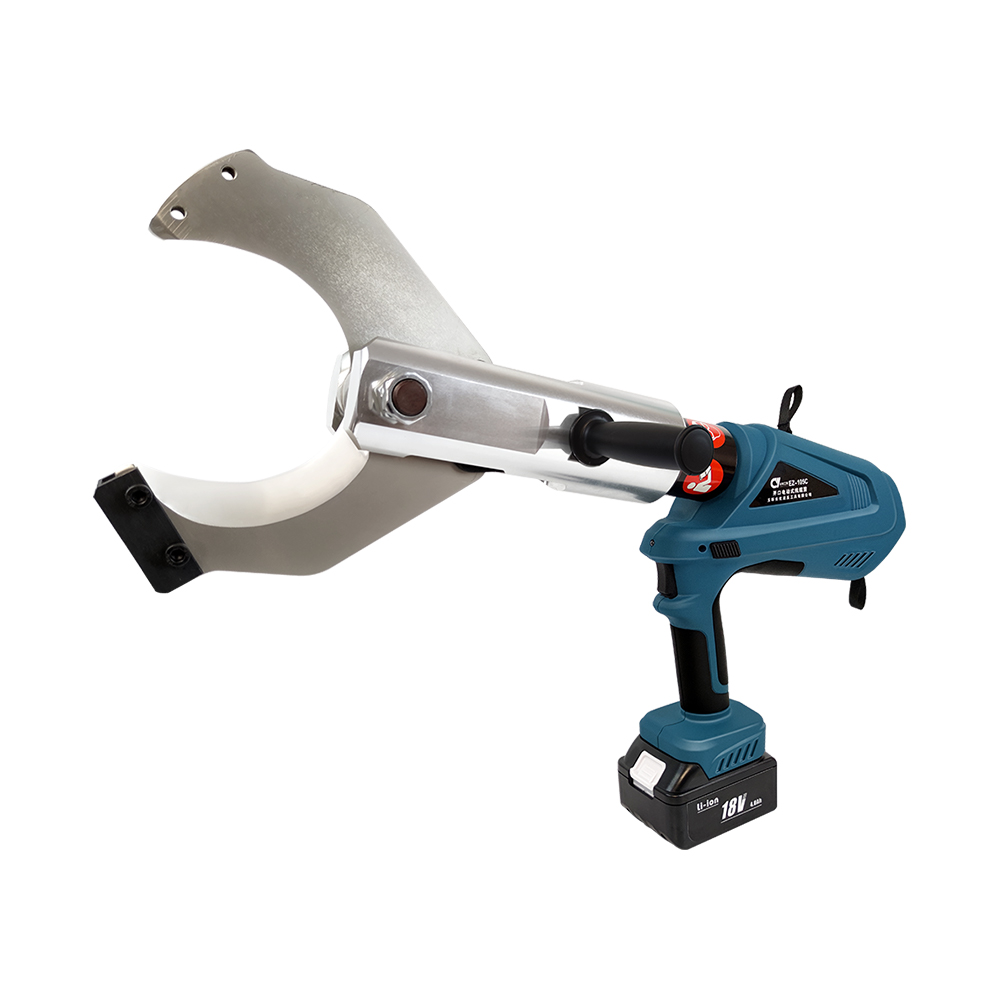

| Model |
EZ-105C |
Voltage |
18V |
| Crimping Force |
120KN |
Capacity |
4.0Ah |
| Stroke |
105mm |
Charging time |
2 hours |
| Cutting range |
Φ105mm (Cu/Al cable and armoured cable) |
| Crimp/Charge |
130 Times per saturation voltage (Copper-aluminum wire) |
| Crimping Cycle |
10-14 seconds (According to the diameter of the cable) |
| Accessories |
Battery: 2 pc, Charger: 1 pc, Seals: 1 set |

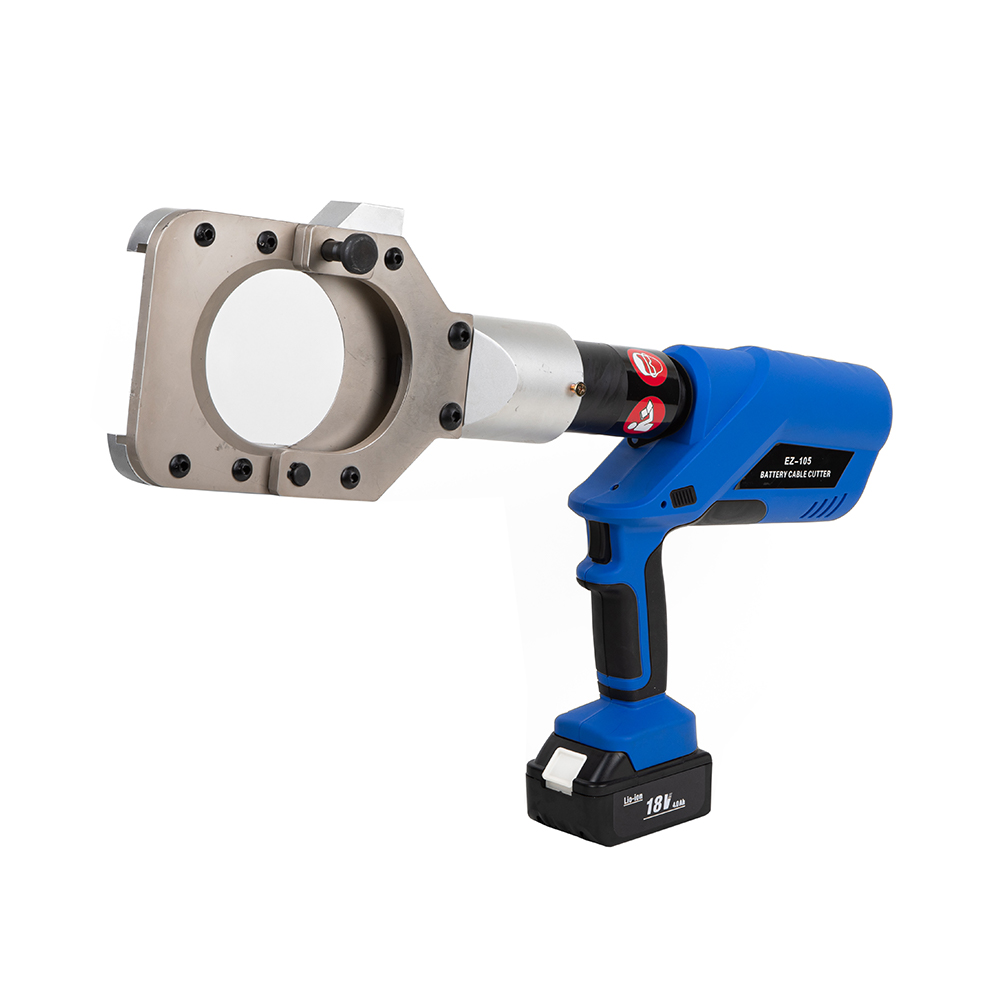

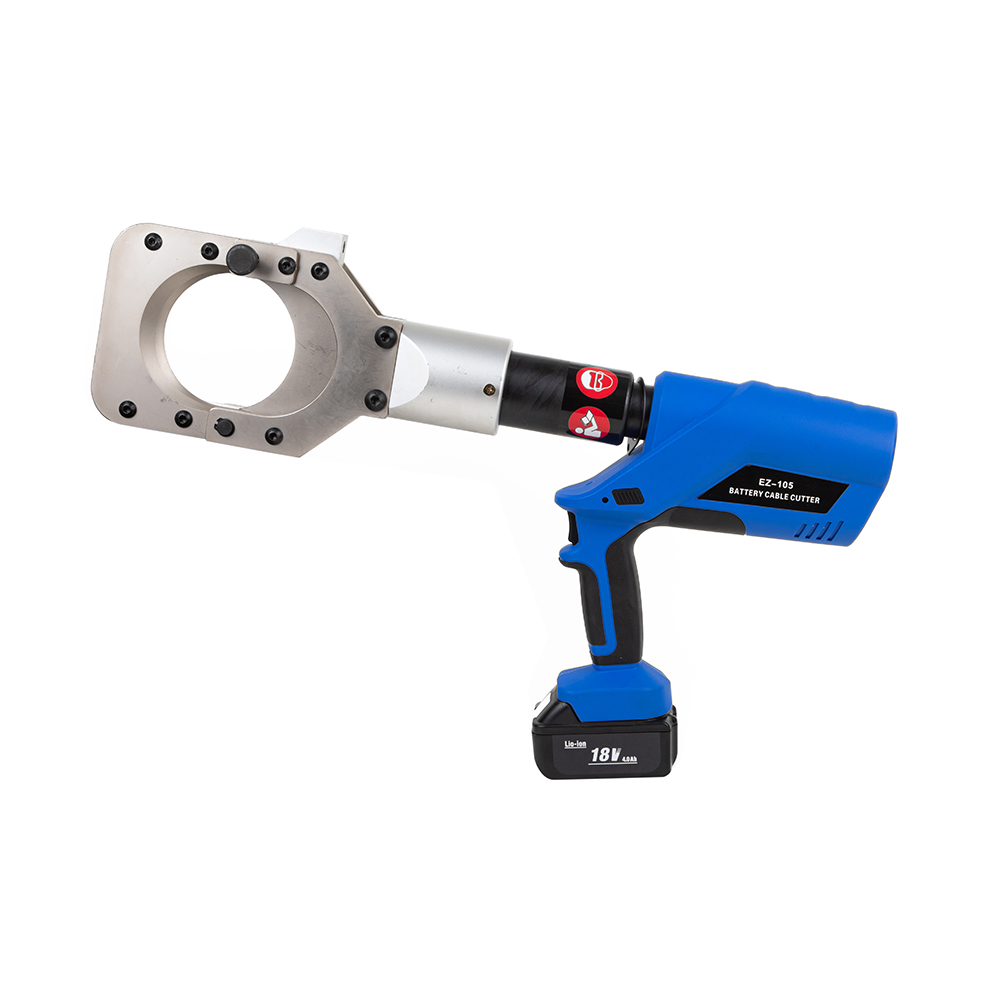

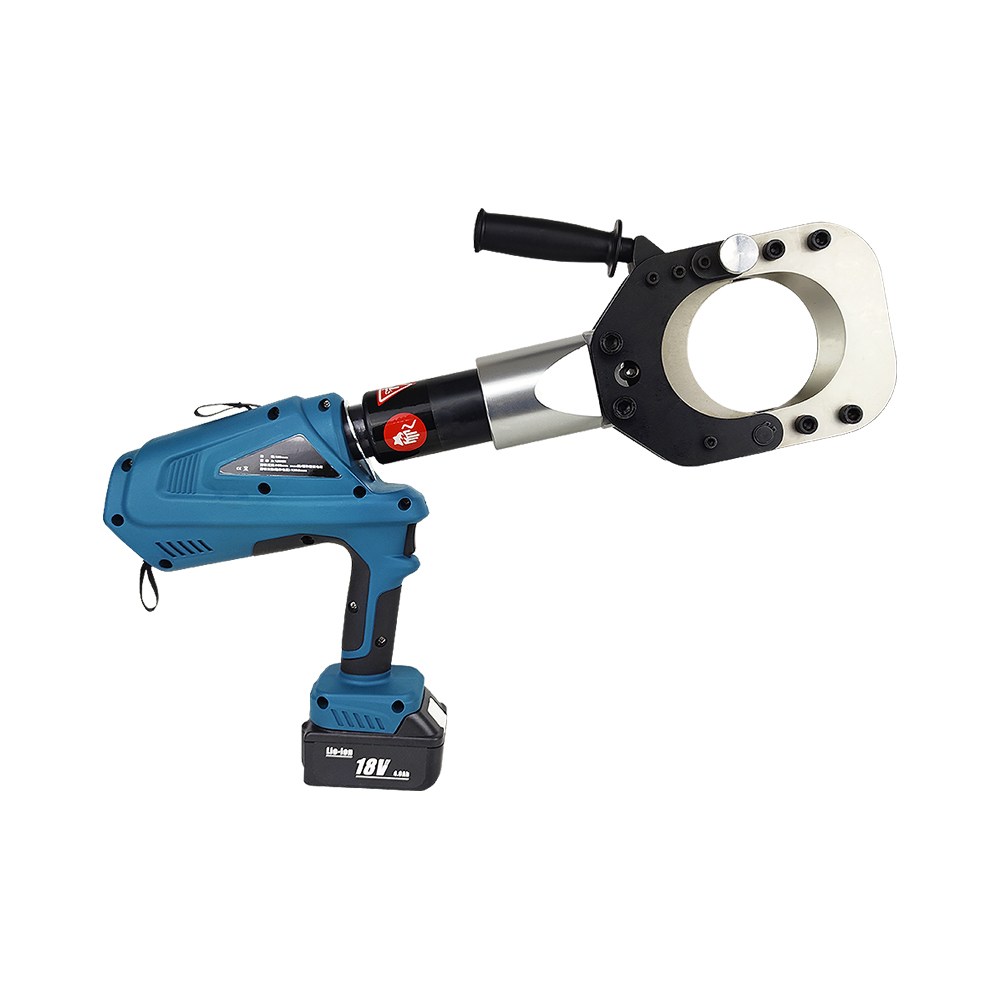

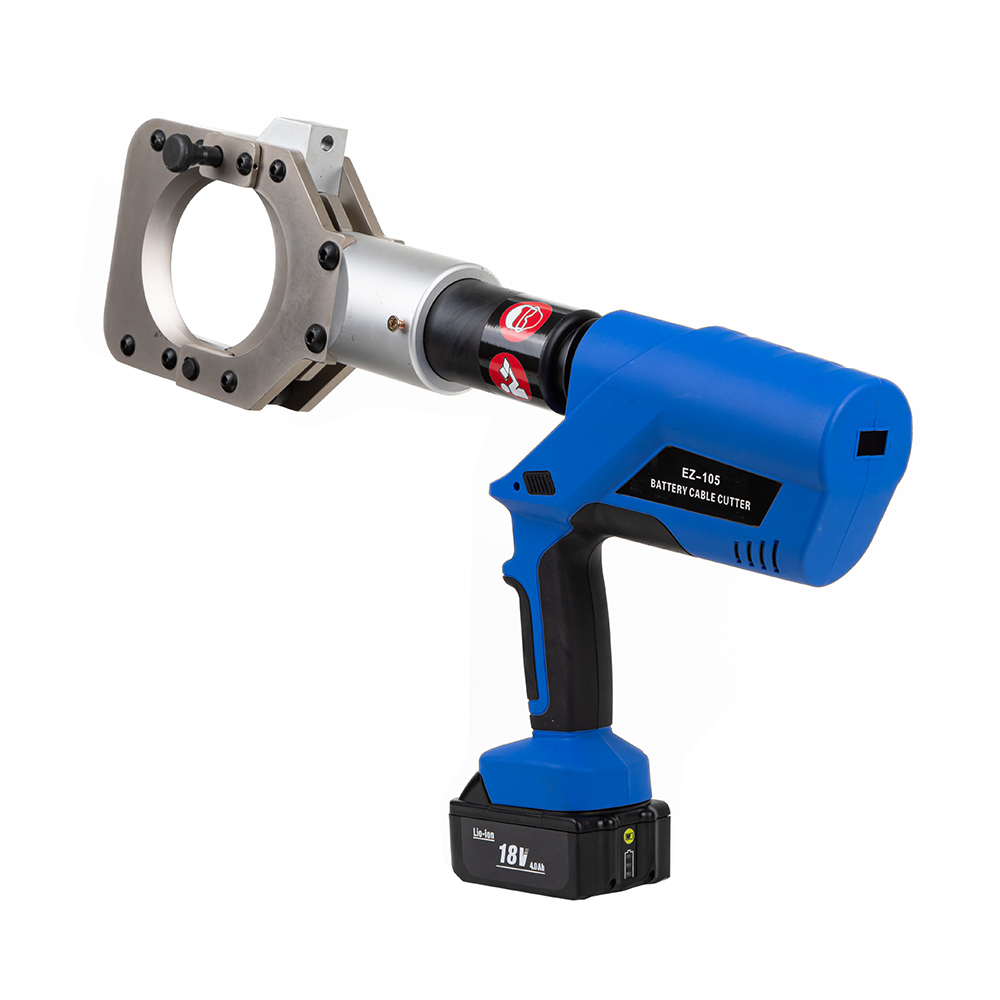

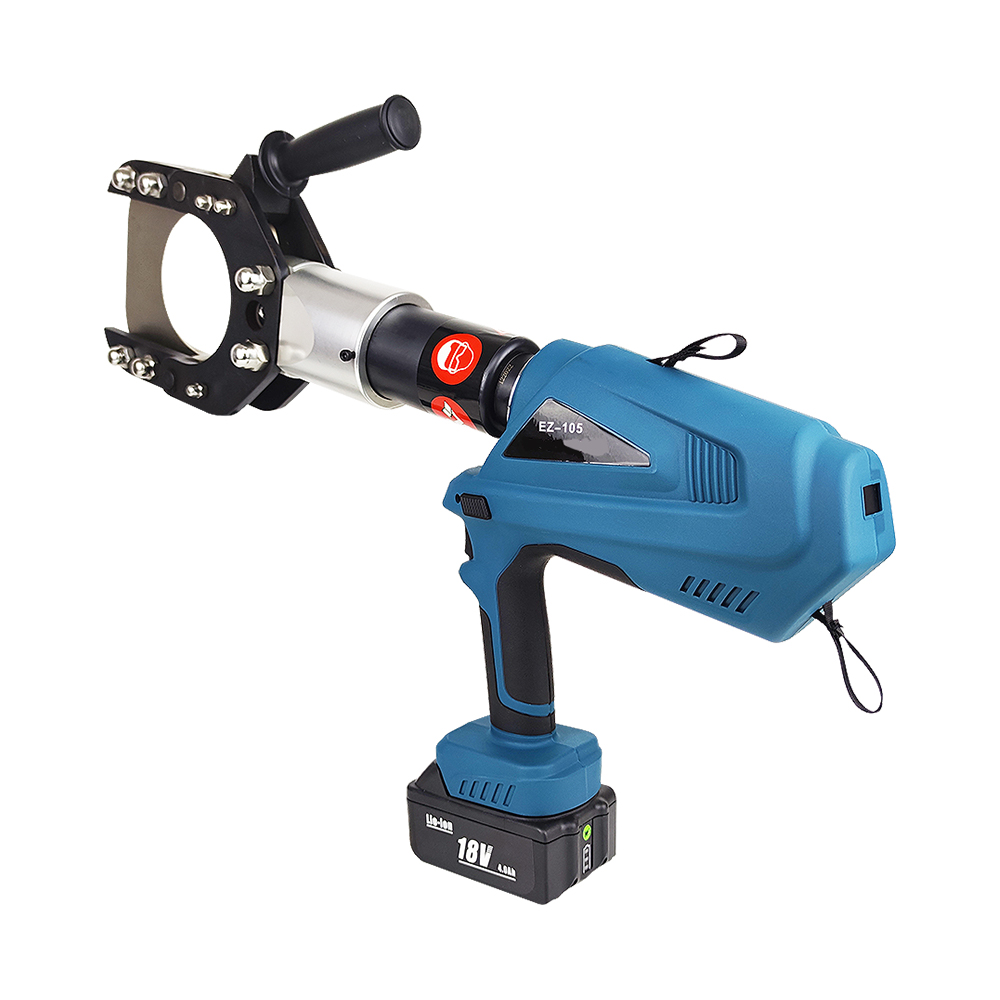

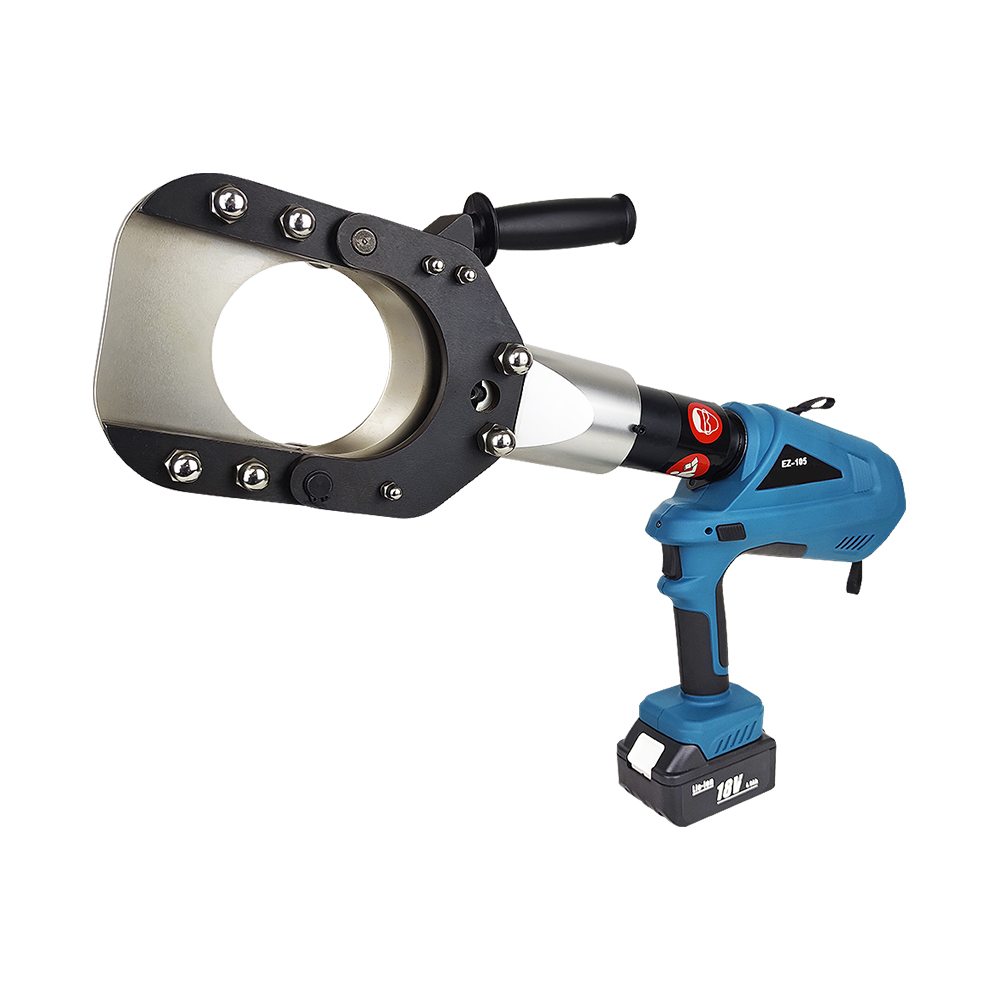

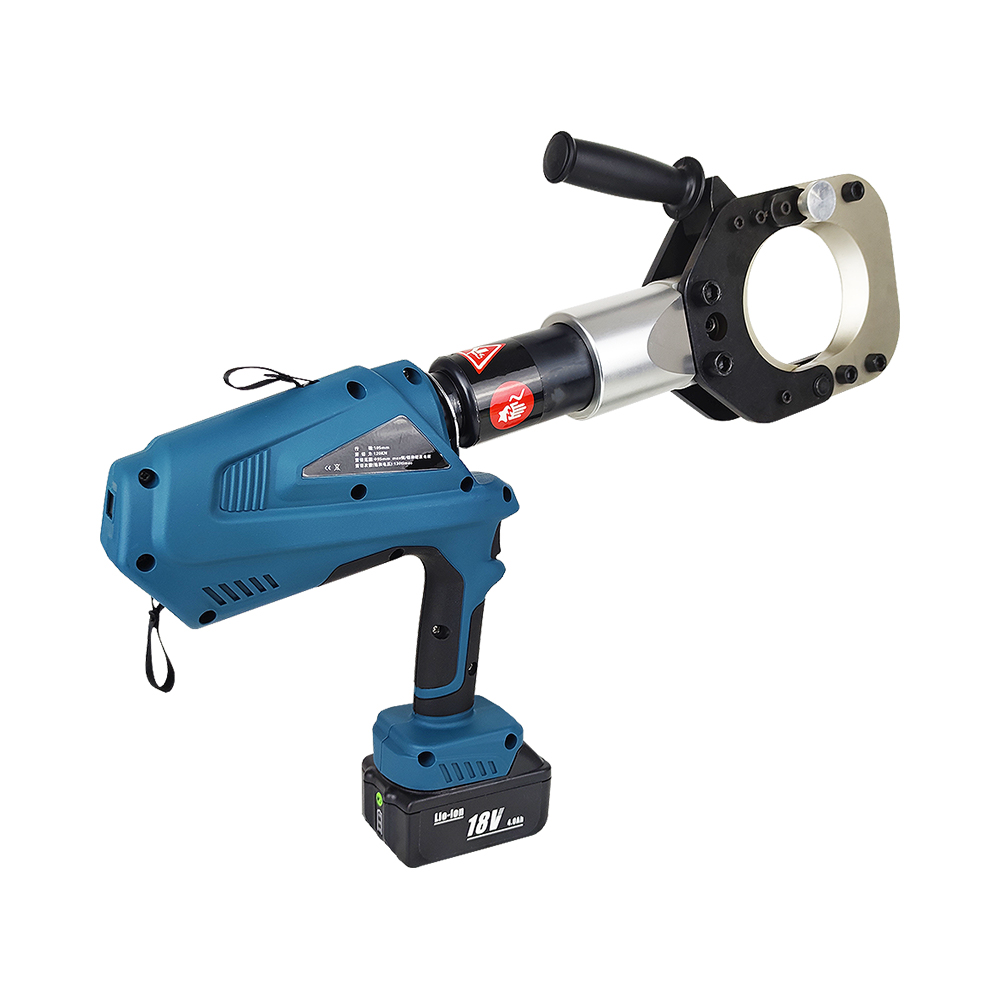

| Model |
EZ-105 |
Output |
120KN |
| Rated Pressure |
70Mpa |
Cutting/Charge |
130 Times per saturation voltage |
| Voltage |
18V |
Capacity |
4.0Ah |
| Charging time |
2 hours |
Gross weight |
16.35Kg |
| Accessories |
Battery:2PC, Charger:1PC, Seals:1Set |
| Cutting range |
Copper and aluminum armored cables below 95mm |
| Cutting/Cycle |
10-15 seconds (depending on the size of the cable diameter) |

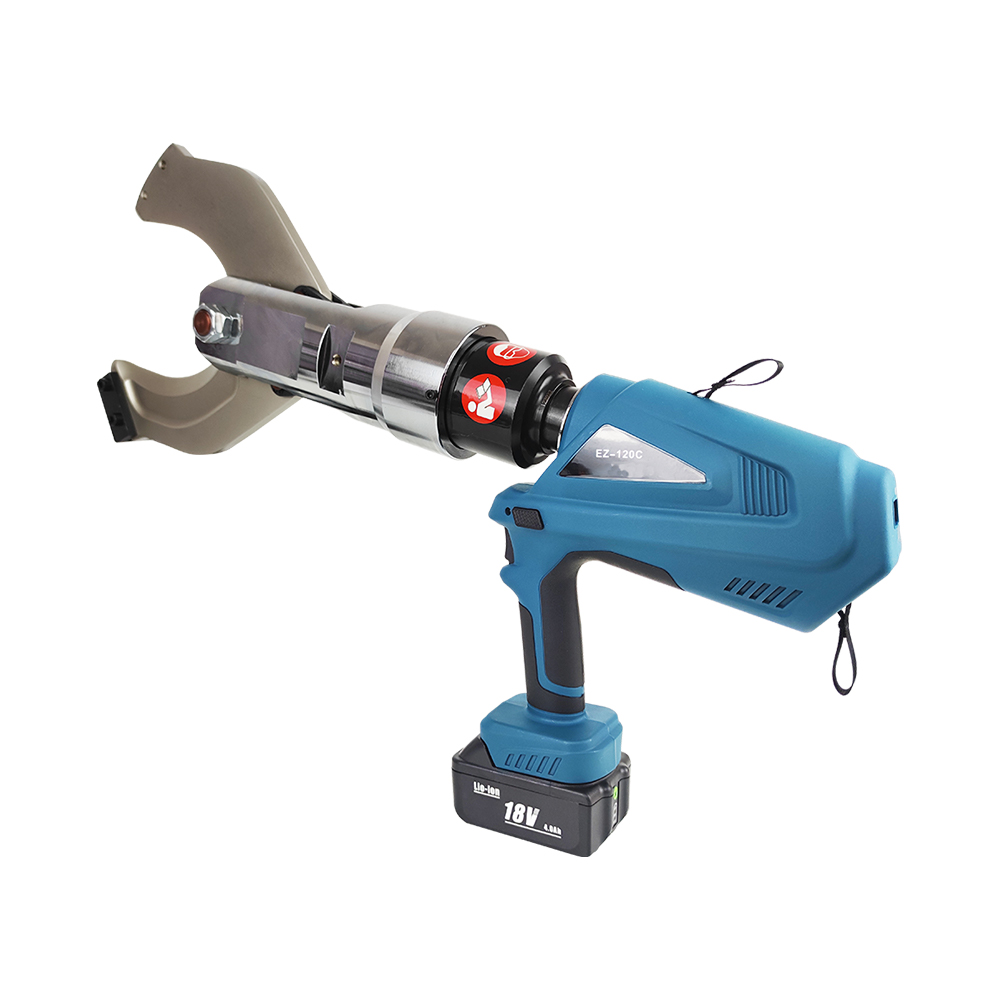

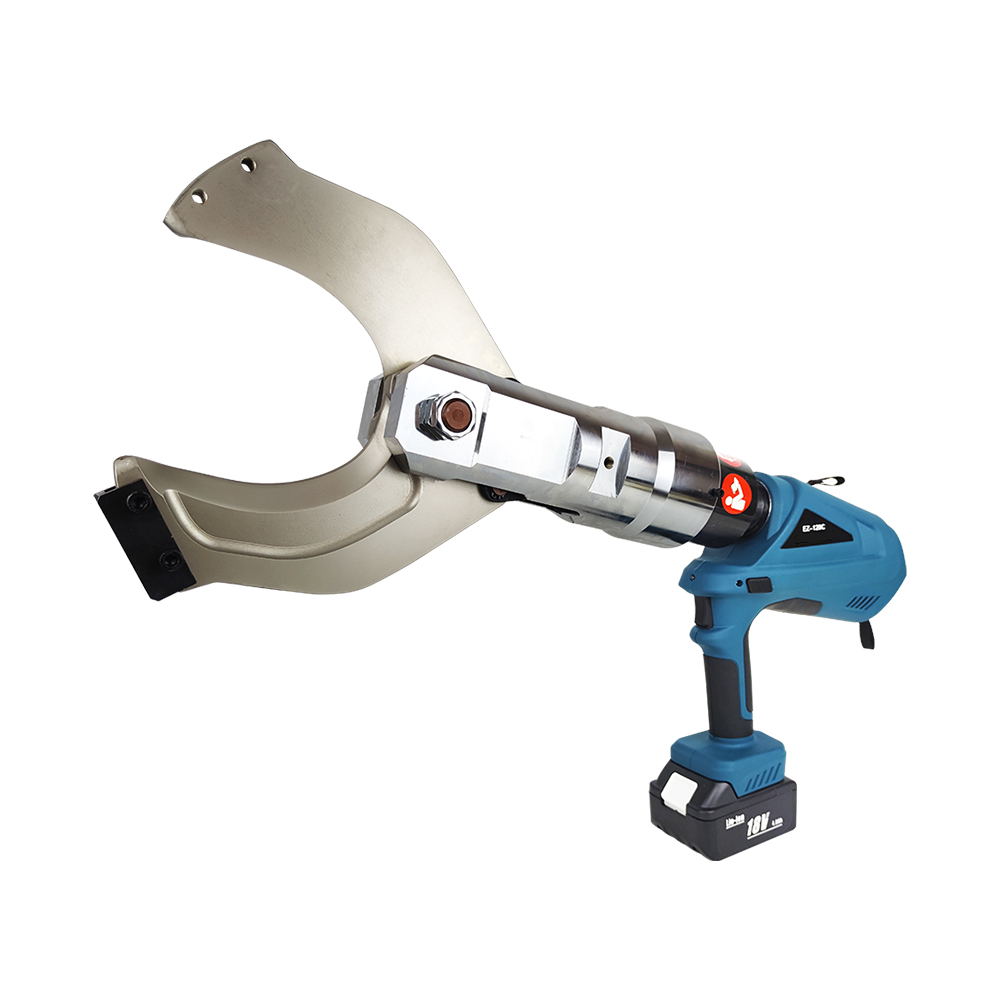

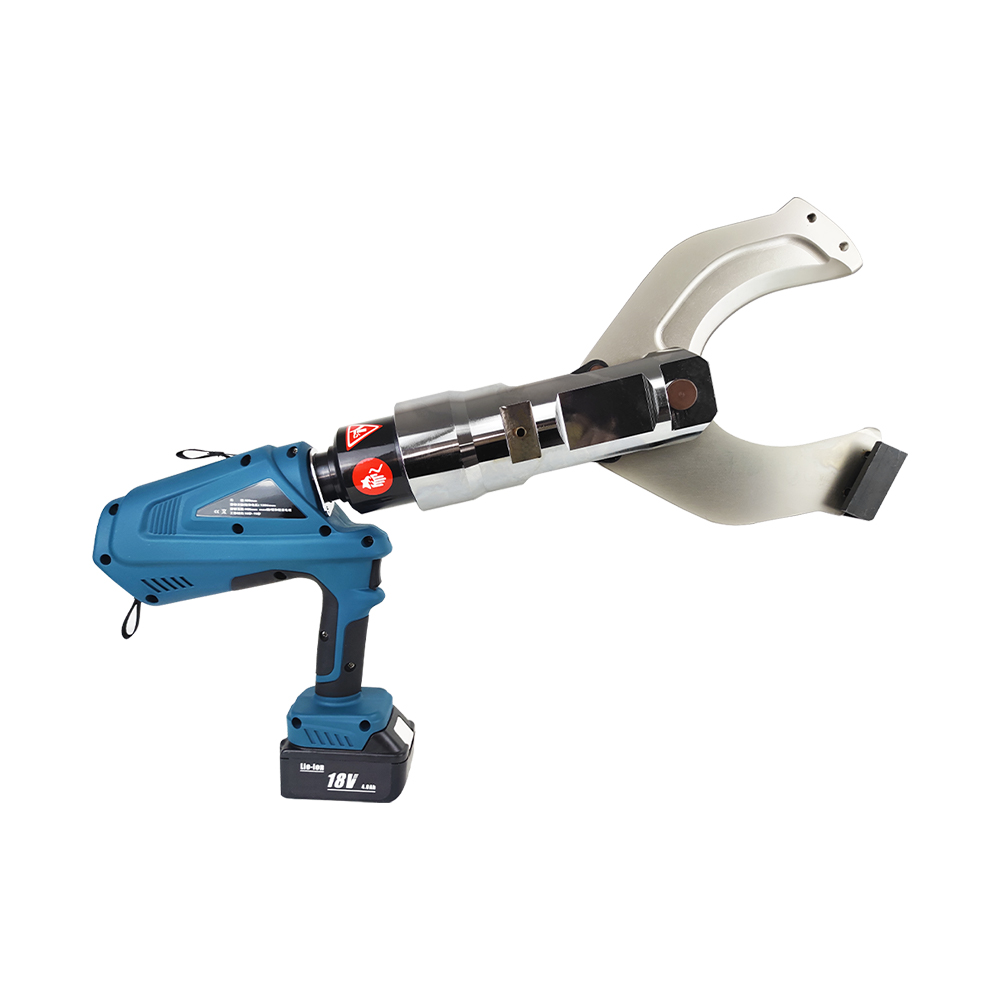

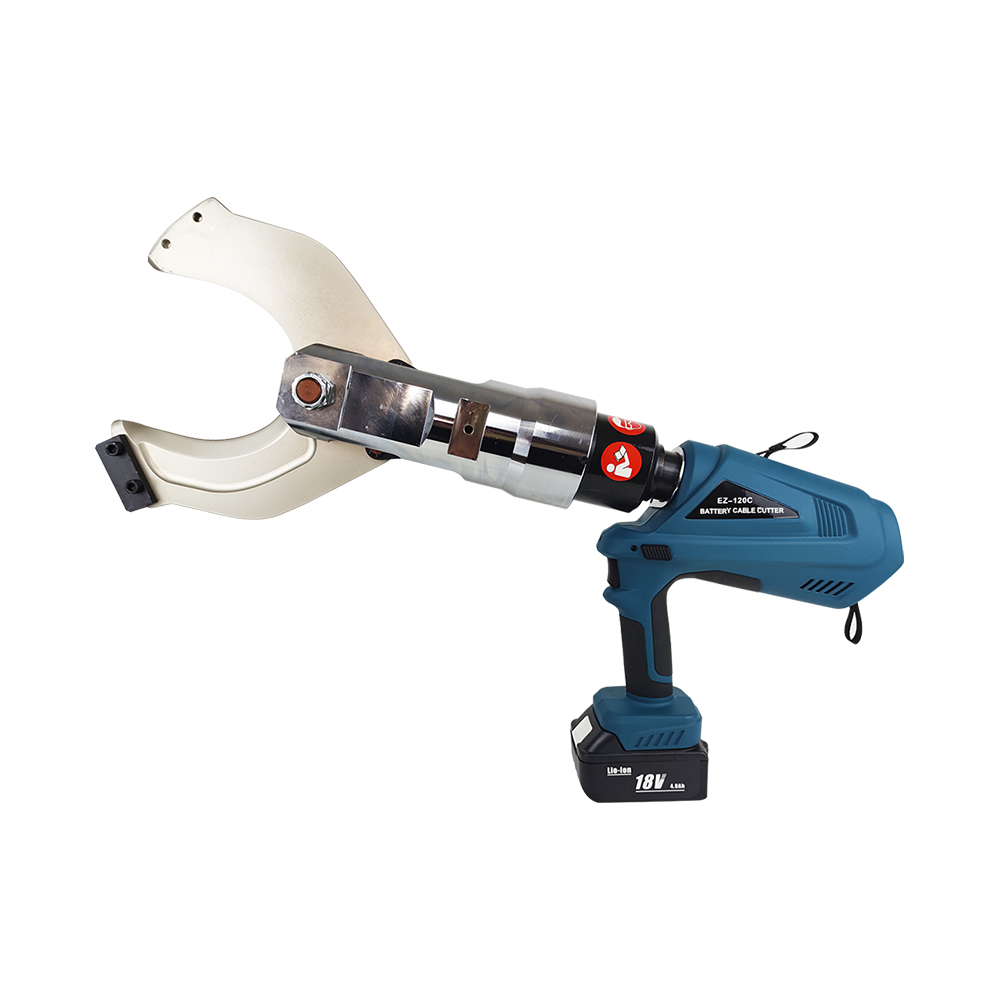

| Model |
EZ-120C |
Voltage |
18V |
| Net weight |
12.2Kg |
Gross weight |
21.4Kg |
| Cutting force |
140KN |
Capacity |
4.0Ah |
| Rated Pressure |
70Mpa |
Charging time |
2 Hours |
| Cutting range |
Copper and aluminum armored cables below 95mm |
| Cutting/Charge |
130 Times per saturation voltage |
| Cutting/Cycle |
10-15 seconds (depending on the size of the cable diameter) |
| Accessories |
Battery:2PC, Charger:1PC, Seals:1Set |
Key Features
Extreme Cutting Capacity: Effortlessly cut cables up to 105mm in diameter, suitable for large-scale industrial and electrical projects.

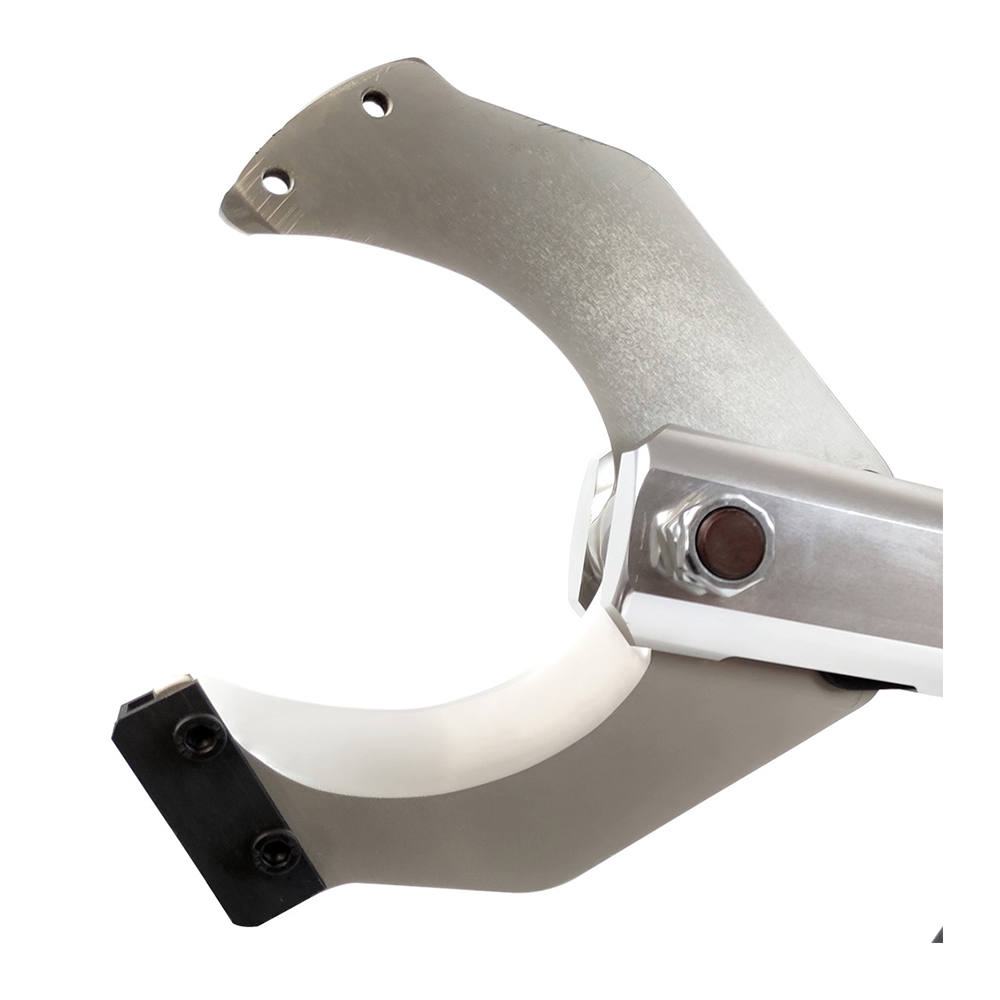

High-Strength Alloy Blades: Precision-hardened blades provide smooth, clean cuts every time, ensuring maximum safety and durability.

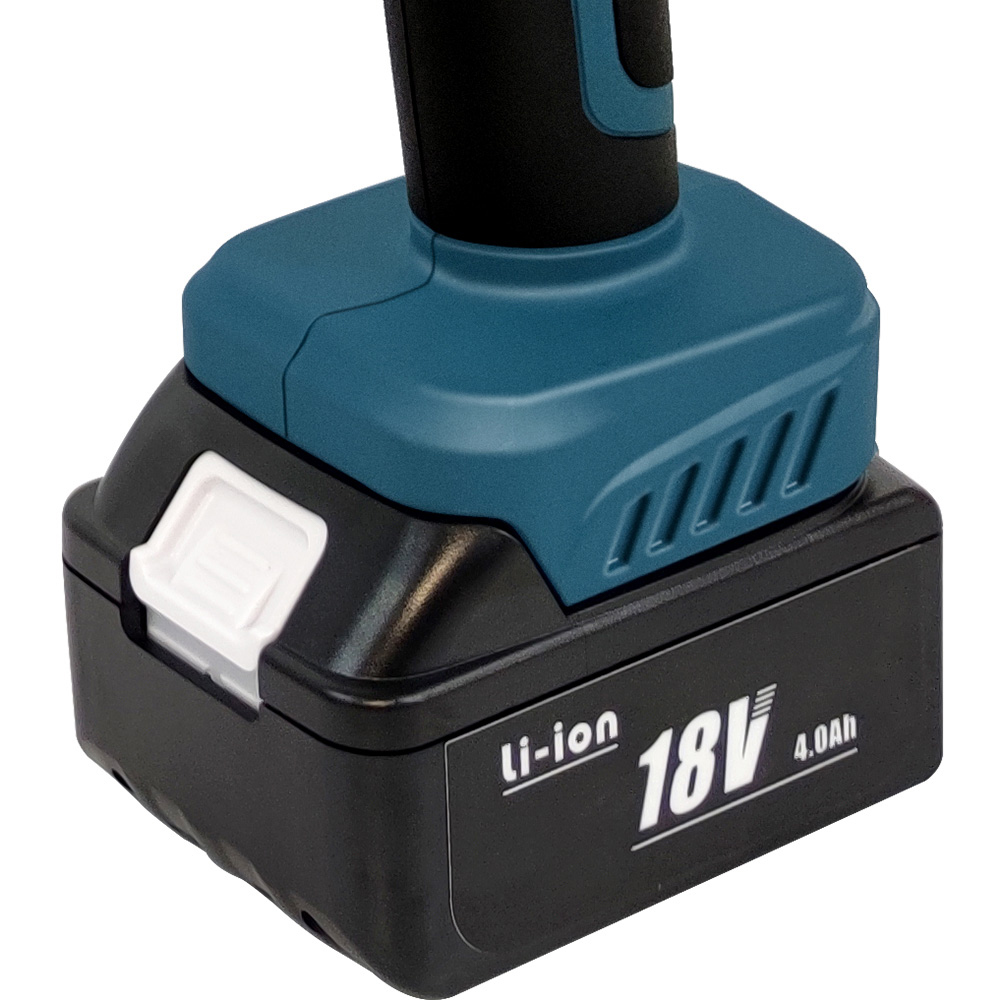

Powerful 18V 4.0Ah Lithium Battery: Supports up to 130–320 cycles per charge, depending on the model, with dual batteries for continuous operation. Recharge in just 2 hours.

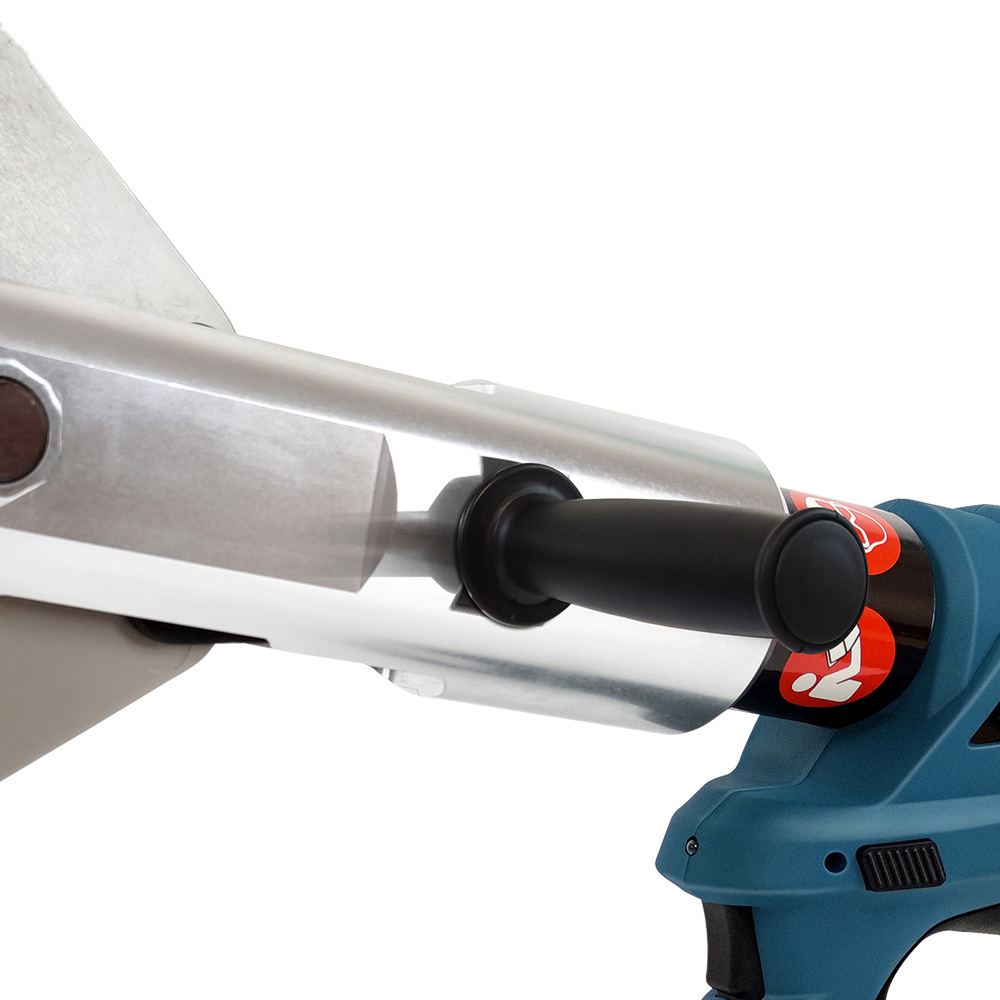

Ergonomic Design & Portability: Optimized balance and non-slip handles allow easy operation even in challenging environments. Tool weight ranges from 10 to 12.5kg.
Intelligent LED Display: Displays battery level, number of cycles, mechanical status, and error codes for professional monitoring.

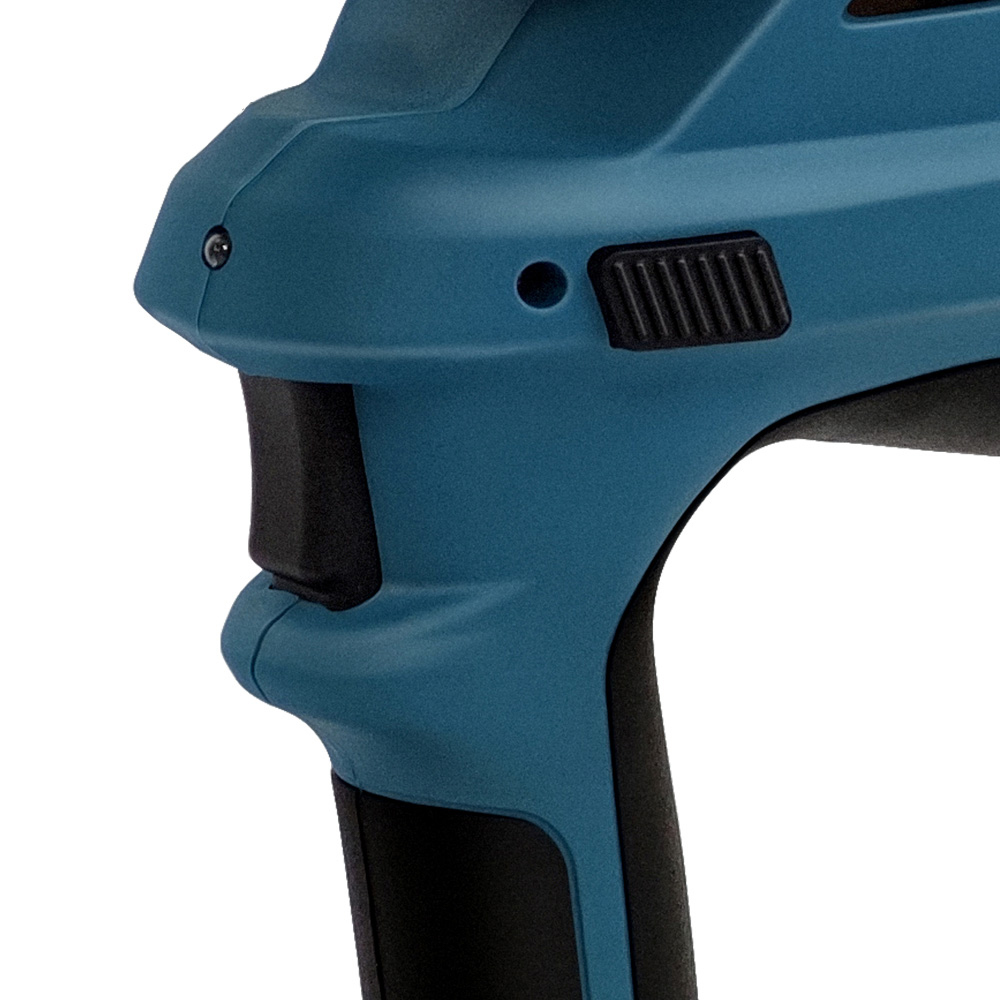

One-Key Operation & Manual Reset: Simple and convenient controls; automatic and manual reset options ensure safe operation.

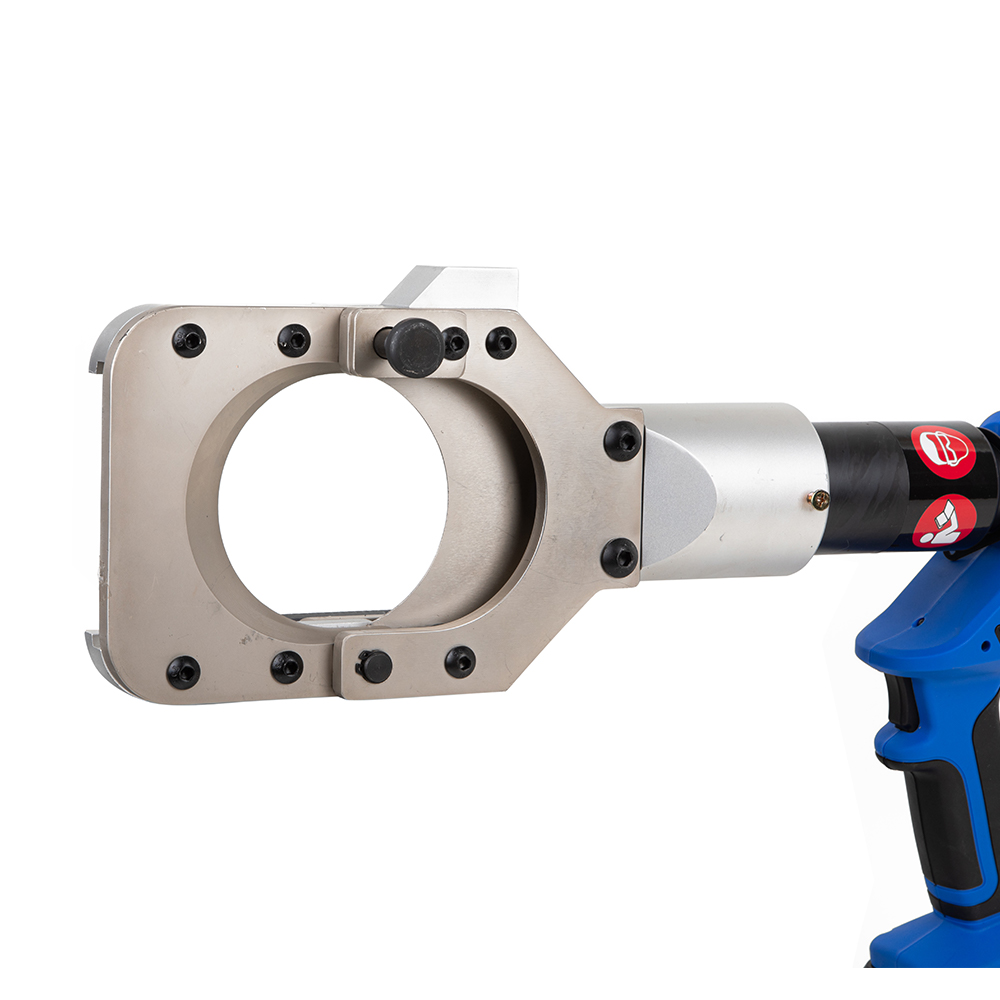

350° Rotating Clamp Head: Provides precise cutting at any angle, ideal for tight spaces and complex cable layouts.

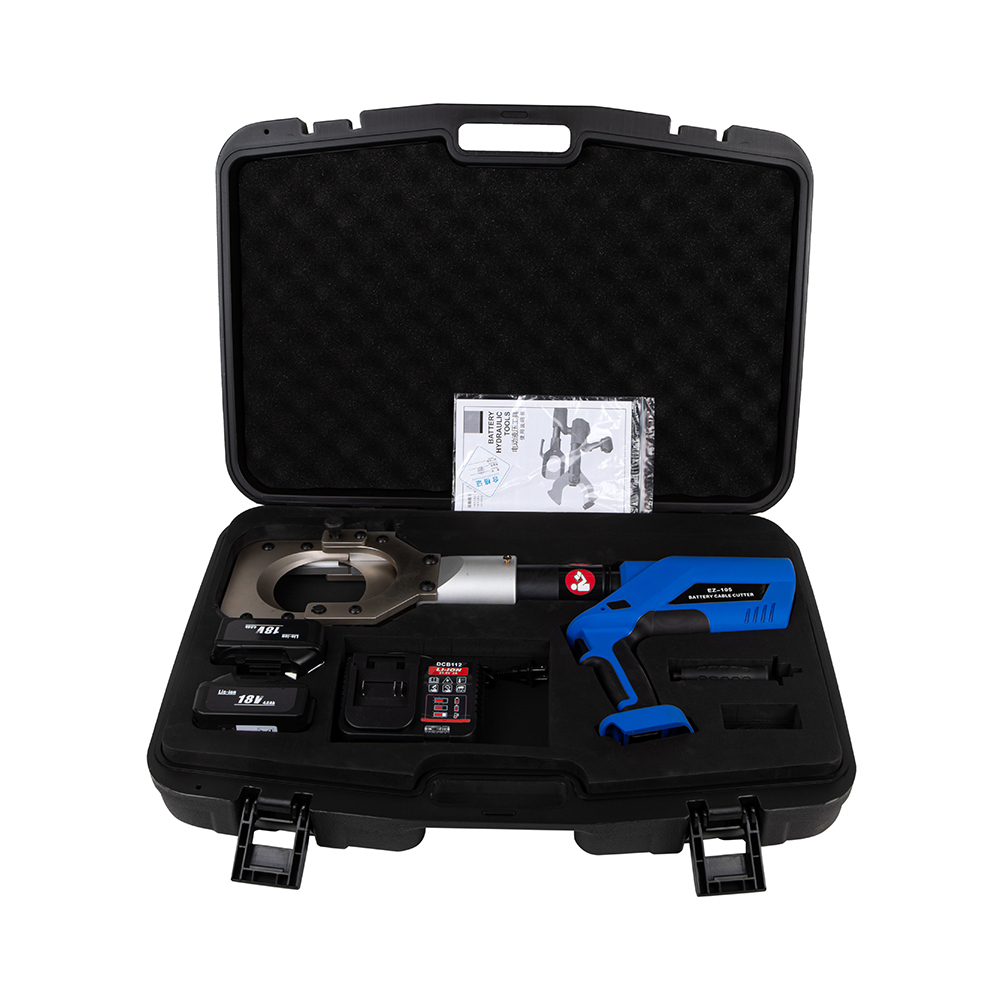

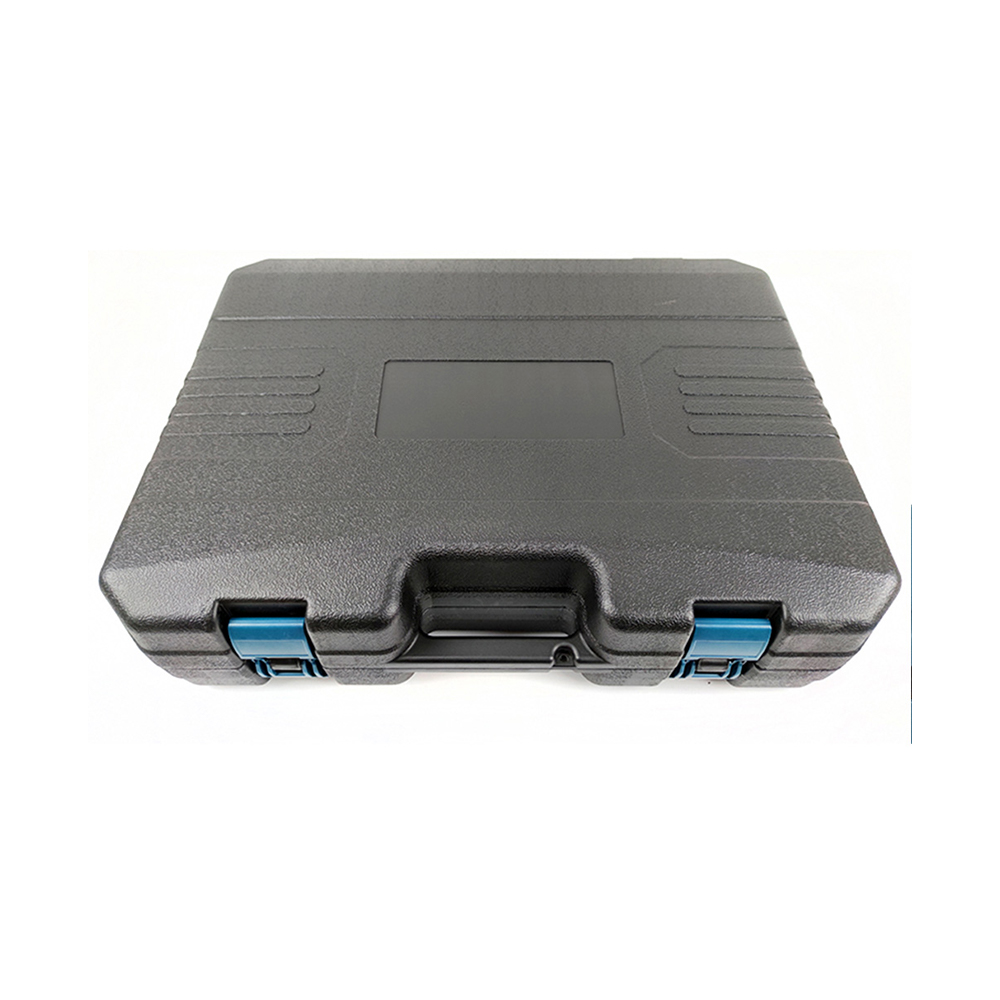

Complete Accessories Included: Comes with dual batteries, charger, and carrying case for effortless transport.
Models Combined
Large-caliber 85C: Cuts up to 85mm; crimp 16–400mm²; fast 6–18s cycles.
Large-caliber 105C / EZ-105 / EZ-120C: Cuts up to 105mm; crimp 16–400mm²; high-efficiency operation with 130 cycles per charge.
Why Choose Large-caliber 100 Series?
Heavy-duty performance for industrial-scale cable projects
Fast, precise, and safe operation
Long-lasting lithium battery ensures uninterrupted work
Professional-grade hydraulic system with durable construction
Large-caliber 100 Series – Power, precision, and reliability in one ultimate cable cutter.
